Acid Proof Lining Work
Acid-proof lining is a specialized construction technique that helps surfaces and structures resistant to harmful effected of acid. These are common in applications which chemical reactions involve acids like the case of a chemical plant, battery fabrication plants, and petrochemical industry and wastewater treatment plants.
Purpose of Acid-Proof Lining
Installation of acid-proof lining is very important.
Prevent oxidation in concrete like any other steel enforcement.
Life Extension of Tanks, Pipes and other acidic environments.
Keep the acids away and sealed safely.
Provide strength and resistance for avoid flow transmission.
Types of Acid-Proof Lining

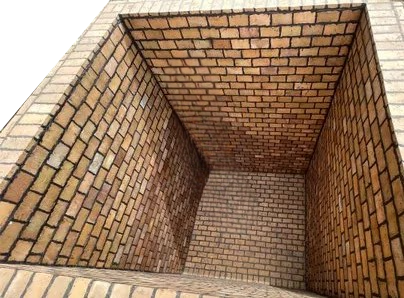

Brick Lining:
Acid-resistant Bricks These bricks are manufactured with materials such as silica, alumina or carbon and they types of the bricks were resistant to acids.
Mortar (generally sodium silicate, potassium silicate or other acid-resistant materials used to bond the bricks)
Tile Lining:
Tiles Resistant to Acid: the above can be of ceramic, carbon or even specialty plastic materials.
Epoxy or Polyester Resins: They help in creating a robust acid-resistant bond between tiles and substrate, when they are used as an adhesive Aggregates
Sheet Lining:
Rubber Linings these are simply sheets of rubber added to the surface for versatility as well as acid obstacle.
Thermoplastic Linings Thermoplastics such as PVC, PP or PVDF are used due to their resistance against chemicals and the simplicity of application.
Coatings and Membranes:
Epoxy Coatings - An impermeable, hardwearing finish that gives exceptional acid-resistance.
Polyurethane Coatings: Excellent chemical resistance and flexibility to allow for substrate expansio
Installation Process
Surface Preparation:
Prepare the surface by removing all dirt, grease or old lining materials.
To give a smooth, flat surface, fix any crack or fault.
Make sure it is dry and free of lubricants.
Application of Primer:
Use of an appropriate primer to aid the bond with lining material and substrate
Laying the Lining:
Brick/Tiles: Use the suitable acid resistant mortar or adhesive to lay out the brick/tile using available patterns. Keep it even and lined up.
These include rubber or thermoplastic sheets, paint-on barriers using epoxy or polyurethane for example through brushes, rollers and spray equipment.
Curing:
The manufacturer's instructions will tell you how long the lining material needs to cure. Thus, this allows the liner to get fully optimized for its chemical resistant properties and adhesion.
Inspection and Testing:
Cheeking the lined surface for voids or defects.
Conduct tests (e.g. spark test or holiday detection) to ensure that there is no breakage in the lining.
Maintenance
Regular maintenance is important for longevity and performance of acid-proof linings:
Inspection intervals: check that the lining is not due for replacement or showing signs of deterioration.
Cleanliness: It is very important part of lining maintenance.
Minor defects should be repaired as soon after placement (and prior to acid exposure) in order to stop the surrounding media and the substrate from contacting any acids.
Uses of Acid-Resistant Linings
Chemical and Processing Plant Application: It shields reactors, tanks, pipelines from corrosive chemicals.
Battery Manufacturing: Protects floors and equipment from sulphuric acid (used in batteries).
Petrochemical Industry: Stops corrosion on stowage tanks and processing units.
Waste Water treatment: defends infrastructure from acidic conditions caused by industrial waste.
A final stage, acid-proof lining is an essential part of the equipment applied in such industries. The initial installation of acid-proof lining and regular maintenance will help in protecting the longevity as well for security aspect associated with industrial infrastructure.

Aicid Proof Lining Metetials

Acidic Refractory Materials
Acidic refractories have an acidic nature, meaning they are used in reactions that occur in acidic mediums. Since acid does not react with acid, if our refractory material is acidic in nature and the reaction is also acidic, there will be no reaction with the refractory, preventing damage.
Examples of Acidic Refractories
One example of acidic refractory is fireclay refractories. Fireclay refractories are a combination of calcined aluminous silicate, primarily composed of silica and alumina. By varying the percentage of silica and alumina, different types of refractory materials can be produced.
Acidic Refractories: To create an acidic refractory, we maintain a higher percentage of silica. Silica has an acidic nature, and its percentage is adjusted to ensure the refractory material also has an acidic nature. Typically, the alumina percentage is kept at 35%.
Neutral Refractories: To create a neutral refractory, we adjust the percentages to reduce the acidity. For example, silica is kept at 40%, and alumina at 55%.
By varying these percentages, we can produce different types of refractory materials to meet various needs. High Alumina Refractories
High alumina refractories contain a high percentage of alumina (Al₂O₃). When the alumina percentage is increased to 75%, the refractory material develops excellent resistance power against high temperatures and slags. This makes it suitable for applications requiring high thermal endurance and resistance.
For instance:
High Alumina Refractories: These have 75% alumina, providing excellent resistance to temperature and slag.
Medium Heat Duty Bricks: When the alumina percentage is around 60-70%, they can be used for medium heat duty applications.
Additional Components
Apart from silica and alumina, other components like K₂O (potassium oxide), CaO (calcium oxide), or MgO (magnesium oxide) can be added to enhance specific properties of the refractory materials.
Manufacturing Process
These refractory materials are produced using Hoffmann furnaces. The bricks are shaped, dried, and then fired to achieve the desired properties. The manufacturing process also involves discussing the properties such as color, compressive strength, and thermal spalling.
Properties and Applications
Color: The color of refractory materials can vary based on the content. For example, higher iron content results in a brown color, while silica can give a greyish hue.
Compressive Strength: Refractory materials have excellent compressive strength, ranging from 200 kg/cm² to 48.26 N/mm², making them as hard as steel. Thermal Spalling: They exhibit good thermal spalling characteristics, essential for high-temperature applications.
Resistance: These materials develop resistance power against slag and can withstand temperatures up to 1000°C. This makes them suitable for various applications like rotary kilns used in cement production at around 1500°C. Applications
Refractory materials are widely used in industries such as steel, where they are used in blast furnaces, open hearth furnaces, metallurgical kilns, and Portland cement kilns. Their excellent resistance to abrasion, slag, and carbon monoxide environments makes them ideal for these applications.
